Node Classification Pipeline

Introduction

In this lesson you will learn how to use node classification in GDS. This includes configuring and executing the pipeline as well as how to make predictions with the resulting modeling object.

Node Classification Pattern in GDS

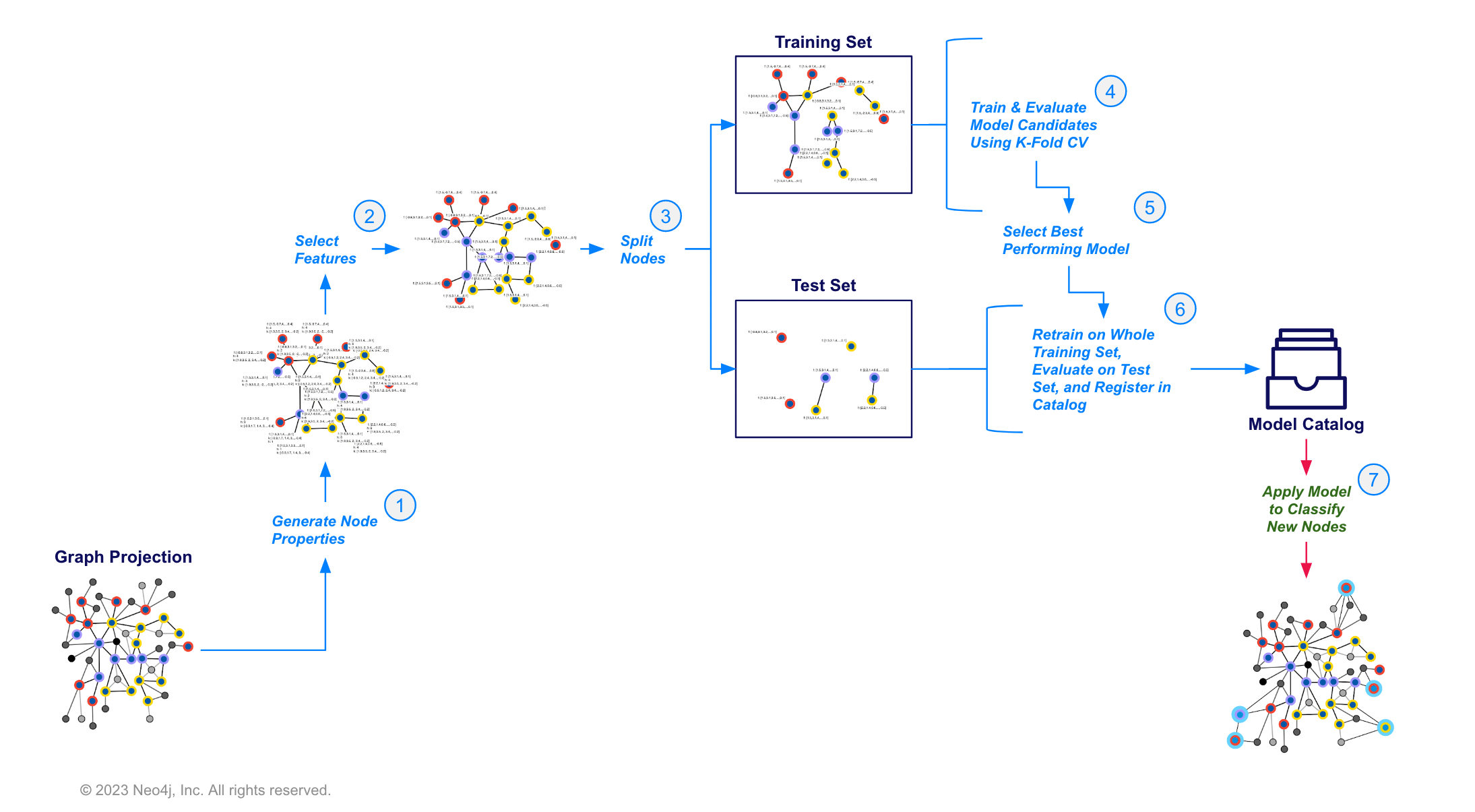

Below is an illustration of the high level node classification pattern in GDS, going from a projected graph through various steps to finally registering a model and making predictions on your data.

nc pipeline flow
Learn all you need to know about Graph Algorithms and Machine Learning PipelinesNode Classification

In practice, steps 1-6 will be executed automatically by the pipeline. You will just be responsible for providing configuration and hyperparameters for them. So at a high level, your workflow will look like the following for node classification, this will be the same for link prediction as well:

  1. Project a graph and configure the pipeline (the order doesn’t matter).

  2. Execute the pipeline with a train command.

  3. Predict on a projected graph with the predict command. The predictions can then be written back to the database if desired using graph write operations.

Example: Predicting Movie Genre with Node Classification

Setting up the Problem

For this example, we will train a model to predict which movies in the graph are comedies which we will define as any movie that has a Genre of "Comedy".

Genre is currently represented by its own node in the graph. For this problem we need it represented as a property of the Movie node. For demonstration purposes we will assign a cls property which is 1 if the movie is a comedy and 0 otherwise.

cypher
MATCH(m:Movie)-[:IN_GENRE]->(g)
WITH m , collect(g.name) AS genres
SET m.cls = toInteger('Comedy' IN genres)
RETURN count(m), m.cls;

The Movie node also has some missing property values for runtime and imdbRating, which could carry predictive signal for this problem. In a real-world scenario we may want to impute values for these, for purposes of quick demonstration we will just exclude them from the sample via label assignment. While we do this we will filter the movies to only consider those released on or after 2010 as this type of data may drift overtime making data further in the past less relevant.

cypher
MATCH(m:Movie)
WHERE m.year >= 2010
    AND m.runtime IS NOT NULL
    AND m.imdbRating IS NOT NULL
SET m:TrainMovie
RETURN count(m)

Now we can project a graph using the TrainMovie node label. We will project mirroring natural and reverse relationships then use collapsePath to provide a monopartite projection which will make the graph easier to handle inside the pipeline for a quick demonstration.

cypher
CALL gds.graph.project('proj',
    {
        Actor:{},
        TrainMovie:{ properties: ['cls', 'imdbRating', 'runtime']}
    },
    {
        ACTED_IN:{},
        HAD_ACTOR:{type:'ACTED_IN', orientation:'REVERSE'}
    }
);

CALL gds.beta.collapsePath.mutate('proj',
  {
    pathTemplates: [['HAD_ACTOR', 'ACTED_IN']],
    allowSelfLoops: false,
    mutateRelationshipType: 'SHARES_ACTOR_WITH'
  }
) YIELD relationshipsWritten;

Configure the Pipeline

The configuration steps are as follows. Technically they need not be configured in order, though it helps to do so to make things easy to follow.

  1. Create the Pipeline

  2. Add Node Properties

  3. Select Node Properties as Features

  4. Configure Node Splits

  5. Add Model Candidates

To get started, create the pipeline by running the following command

cypher
CALL gds.beta.pipeline.nodeClassification.create('pipe')

Once that is complete we will add node properties. A node classification pipeline can execute one or several GDS algorithms in mutate mode that create node properties in the projection.

For our problem, let’s do a few things

First, lets generate FastRP embeddings which will encapsulate the locality of movie nodes in the graph

cypher
CALL gds.beta.pipeline.nodeClassification.addNodeProperty('pipe', 'fastRP', {
  embeddingDimension: 32,
  randomSeed: 7474,
  mutateProperty:'embedding'
})
YIELD name, nodePropertySteps;

Next, we can add degree centrality which will measure the number of other movies that share actors.

cypher
CALL gds.beta.pipeline.nodeClassification.addNodeProperty('pipe', 'degree', {
  mutateProperty:'degree'
})
YIELD name, nodePropertySteps;

Lastly, we will scale the runtime property which is good practice for values like this one that are relatively high magnitude compared to the other properties.

cypher
CALL gds.beta.pipeline.nodeClassification.addNodeProperty('pipe', 'alpha.scaleProperties', {
  nodeProperties: ['runtime'],
    scaler: 'Log',
  mutateProperty:'logRuntime'
})
YIELD name, nodePropertySteps;

Once the properties are configured, we can configure the subset of node properties that we want to use as features for the model

cypher
CALL gds.beta.pipeline.nodeClassification.selectFeatures(
    'pipe',
    ['imdbRating', 'logRuntime', 'embedding', 'degree'])
YIELD name, featureProperties;

After that we can configure the data splitting. In this case, it is fairly straightforward. We configure a testFraction which determines how to randomly split between test and training nodes. Since the pipeline uses a cross-validation strategy, we can also set the number of validation folds we want here.

cypher
CALL gds.beta.pipeline.nodeClassification.configureSplit('pipe', {
 testFraction: 0.2,
  validationFolds: 5
})
YIELD splitConfig;

The final step to pipeline configuration is creating model candidates. The pipeline is capable of running multiple models with different training methods and hyperparameter configurations. The best performing model will be selected after the training step completes.

To demonstrate, we will just add a few different logistic regressions here with different penalty hyperparameters. GDS also has a random forest model and there are more hyperparameters for each that we could adjust, see the Training methods docs for more details.

cypher
CALL gds.beta.pipeline.nodeClassification.addLogisticRegression('pipe', {penalty: 0.0})
YIELD parameterSpace;
cypher
CALL gds.beta.pipeline.nodeClassification.addLogisticRegression('pipe', {penalty: 0.1})
YIELD parameterSpace;
cypher
CALL gds.beta.pipeline.nodeClassification.addLogisticRegression('pipe', {penalty: 1.0})
YIELD parameterSpace;

Train the Pipeline

The following command will train the pipeline. This process will

  1. Apply node and relationship filters

  2. Execute the above pipeline configuration steps

  3. Train with cross-validation for all the candidate models

  4. Select the best candidate according to the metric parameter. We will use ACCURACY for ease of interpretation but other F1 and precision/recall metrics exists, you can reference them in the documentation node classification pipelines documentation here

  5. Retrain the winning model on the entire training set and perform a final evaluation on the test set according to the metric

  6. Register the winning model in the model catalog

cypher
CALL gds.beta.pipeline.nodeClassification.train('proj', {
  pipeline: 'pipe',
  targetNodeLabels: ['TrainMovie'],
  modelName: 'nc-pipeline-model',
  targetProperty: 'cls',
  randomSeed: 7474,
  metrics: ['ACCURACY']
}) YIELD modelInfo
RETURN
  modelInfo.bestParameters AS winningModel,
  modelInfo.metrics.ACCURACY.train.avg AS avgTrainScore,
  modelInfo.metrics.ACCURACY.outerTrain AS outerTrainScore,
  modelInfo.metrics.ACCURACY.test AS testScore;

This command should output training scores according to metric. In this case we will get an accuracy of ~70%. Certainly a lot of room for improvement given the class balance. There are plenty of ways this problem could be remodeled with different features from the graph.

Predict with the Pipeline

The operation for predicting with the trained model and writing back to the graph has the following form

cypher
CALL gds.beta.pipeline.nodeClassification.predict.write(
  graphName: String,
  configuration: Map
)
YIELD
  preProcessingMillis: Integer,
  computeMillis: Integer,
  postProcessingMillis: Integer,
  writeMillis: Integer,
  nodePropertiesWritten: Integer,
  configuration: Map

The operation also supports stream and mutate execution modes.

You can use this to classify newly added nodes or nodes in other regions of the graph. We will not go over a specific example here (We will spend some time on using predict in the link prediction lesson).

Check your understanding

1. Machine Learning Steps

Which of the following is NOT a step in the node classification pipeline?

  • ❏ Feature Selection

  • ❏ Node Splitting

  • ✓ Manual Model Selection

  • ❏ Add Models with hyperparameter configuration

Hint

A node classification pipeline works is an unsupervised process.

Solution

The only step above that does not take place in the node classification pipeline is Manual Model Selection. You can read more about node classification pipelines in the GDS documentation.

2. Pipeline Execution

Which command is used to execute a configured pipeline to train model candidates and register the best performing model in the catalog?

  • execute

  • train

  • run

  • register

Hint

It is common to train a machine learning model, and GDS is no different.

Solution

The answer is train.

Summary

In this lesson you learned how node classification works in GDS and how to configure, execute, and predict with a pipeline. As always, our Node classification pipelines documentation contains more in depth resources on node classification methodology and configuration.
