Labels in the Graph

Labels at runtime

Node labels serve as an anchor point for a query. By specifying a label, we are specifying a subset of one or more nodes with which to start a query. Using a label helps to reduce the amount of data that is retrieved.

For example:

MATCH (n) RETURN n returns all nodes in the graph.

MATCH (n:Person) RETURN n returns all Person nodes in the graph.

Your goal in modeling should be to reduce the size of the graph that is touched by a query.

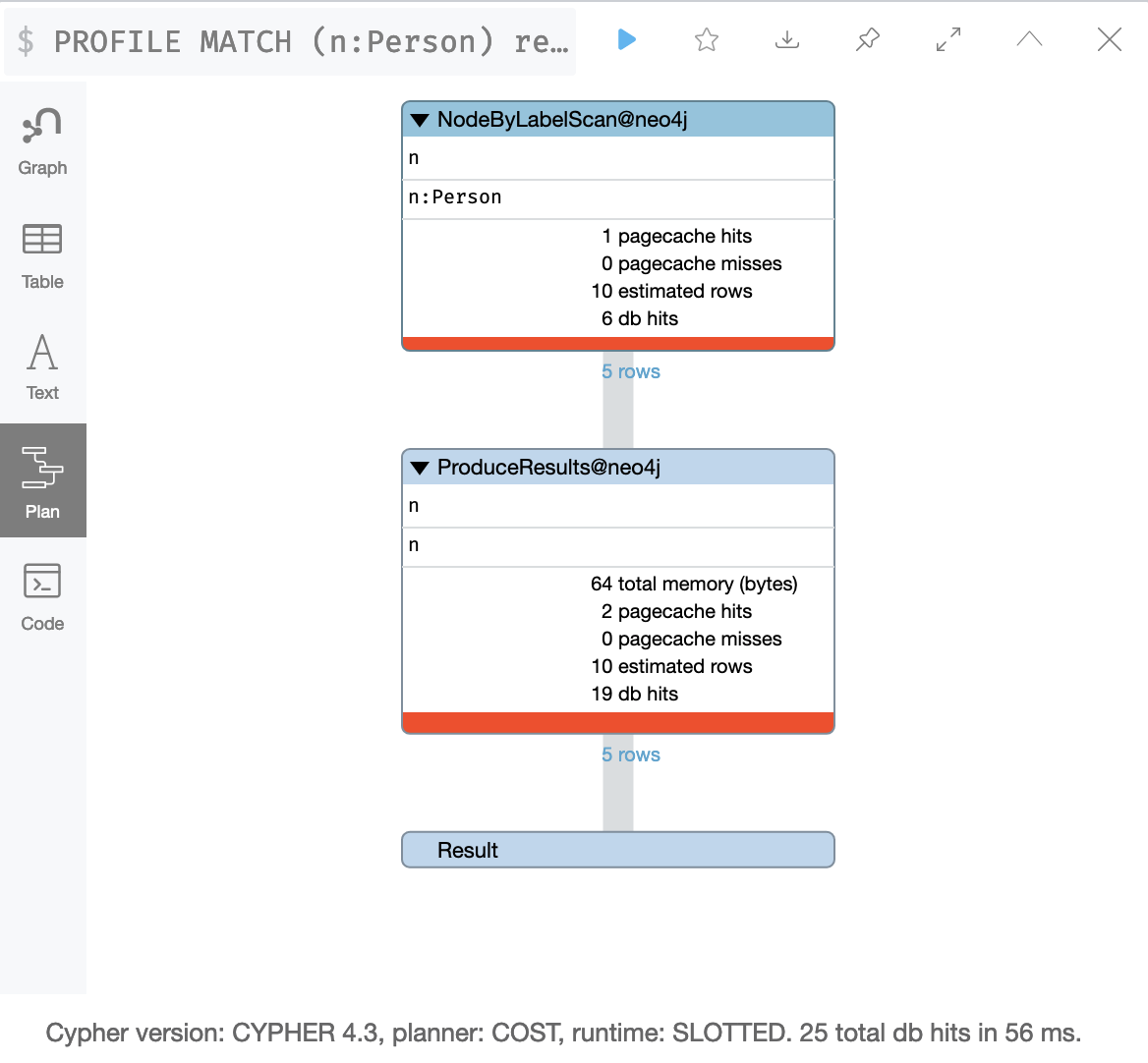

In Cypher, you can produce a query plan that shows what operations occur during the query. This figure shows a query plan by the number of db hits for the query to retrieve all Person nodes:

Example Query Plan

Later in this lesson you will learn how to produce a query plan.

If Person nodes also had a label which is the country that a person is from, then you could used this Cypher code to retrieve all people from the US:

MATCH (n:US) RETURN n returns all US nodes in the graph which happen to be Person nodes.

But having a label that is specific like this might be overkill, especially if the query could be:

MATCH (n:Person) WHERE n.country = 'US' RETURN n

In Cypher, you cannot parameterize labels so keeping the country as a property makes the Cypher code more flexible.

But if you have a strong use case for having multiple labels for a node, you should do so.

Do not overuse labels

You should use labels wisely in your data model. They should be used if it will help with most of your use cases. A best practice is to limit the number of labels for a node to 4.

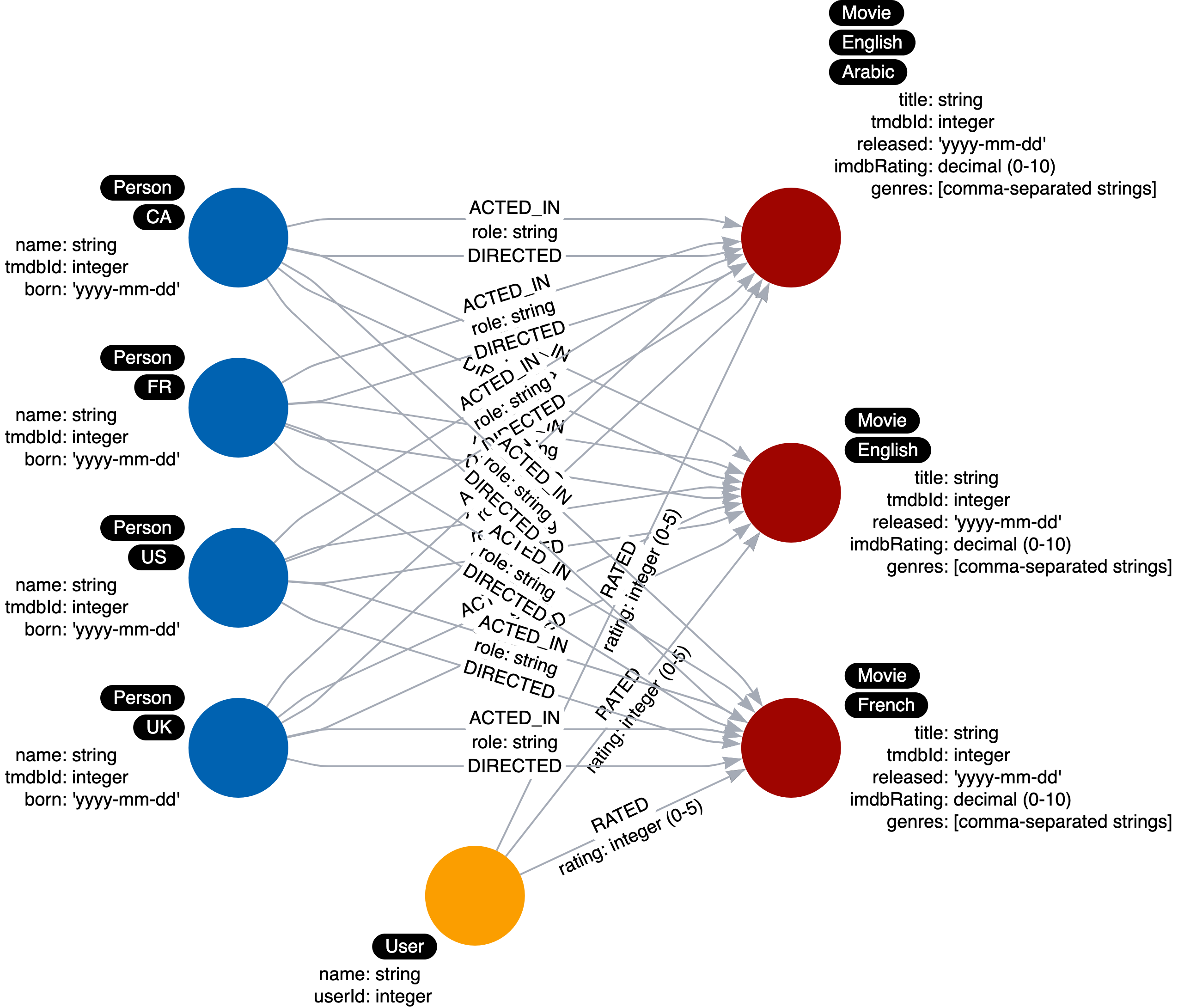

Here is an example of overuse of labels in the data model:

Label overuse

Here we see Person nodes that have a label representing the country that a Person is from like we described earlier.

In addition, we see multiple labels for Movie nodes. The label represents the languages available for a movie.

This is another similar scenario where you must decide if an important use case is related to the language of a movie. Again if the use of a property for a node will suffice, then it is best to not have the label.

New use case

Here is an example where adding a label will help our queries at runtime.

What if we added a new use case:

Use case #10: What actors were born before 1950?

Here is the Cypher statement to test this use case:

cypher
MATCH (p:Person)-[:ACTED_IN]-()
WHERE p.born < '1950'
RETURN p.name

Here is what this Cypher statement does:

  1. A node by label scan to retrieve all Person nodes.

  2. Tests the born property for the nodes retrieved to filter them.

  3. Determines which of these filtered nodes have the outgoing ACTED_IN relationship.

  4. Returns the name property values.

Profiling a query

You can use the PROFILE keyword to see the performance for a query.

cypher
PROFILE MATCH (p:Person)-[:ACTED_IN]-()
WHERE p.born < '1950'
RETURN p.name

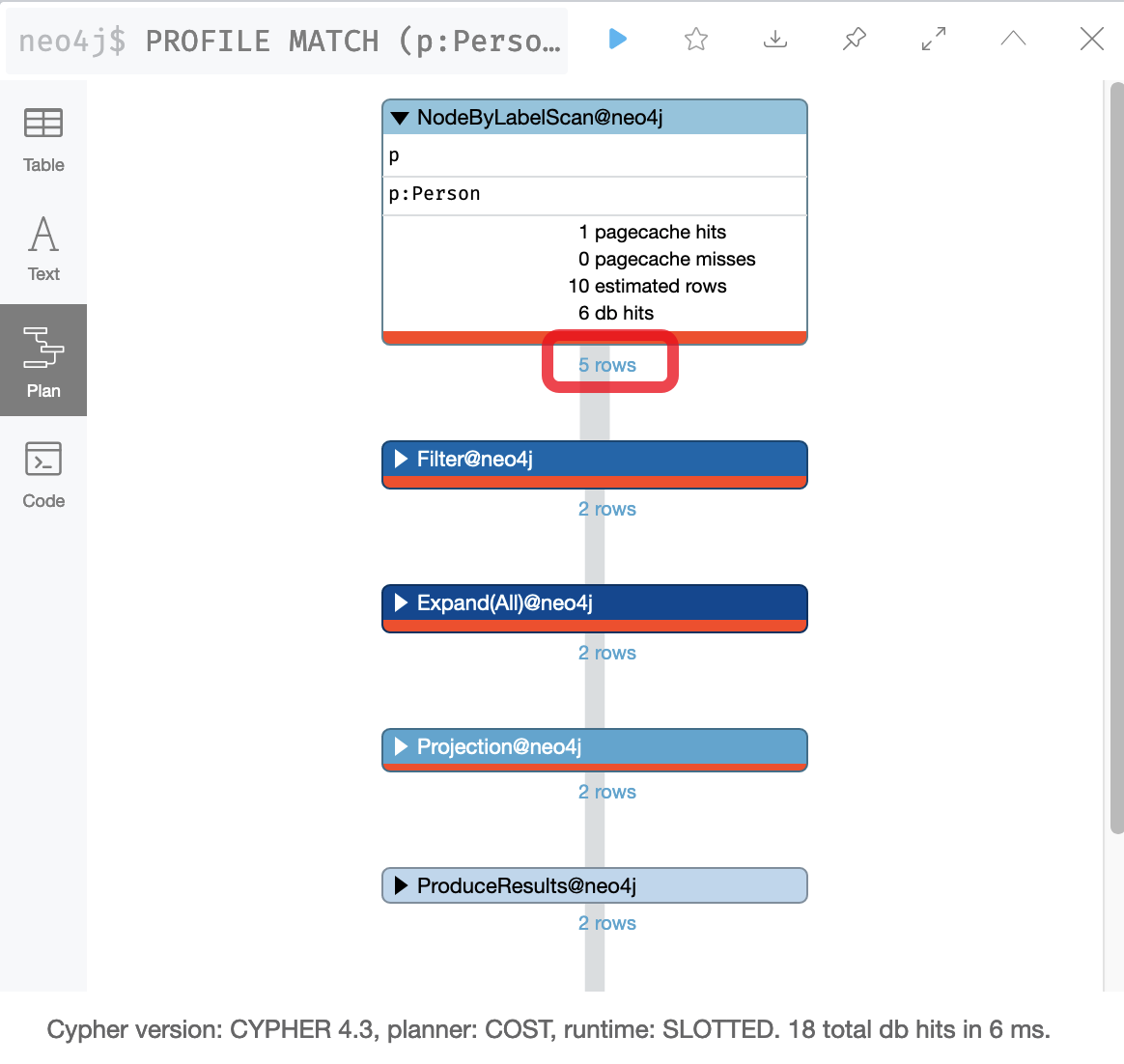

This is the result of the profile:

Initial profile

Because the cache is automatically populated, it is sometimes hard to measure performance with a small dataset. That is, db hits and elapsed time may not be comparable. What you can see, however, is the number of rows that are retrieved in the query and this number can be compared.

In the first step of this query, we see that 5 rows are returned. You can imagine that if this were a fully-loaded graph with millions of nodes, in step 1, it would need to retrieve a lot of Person nodes, some of which are not actors. One way that you can optimize this retrieval is to change the data model to include an Actor label for a Person node.

Refactoring the model

If we refactor, the initial node by label scan would only retrieve the Actor nodes.

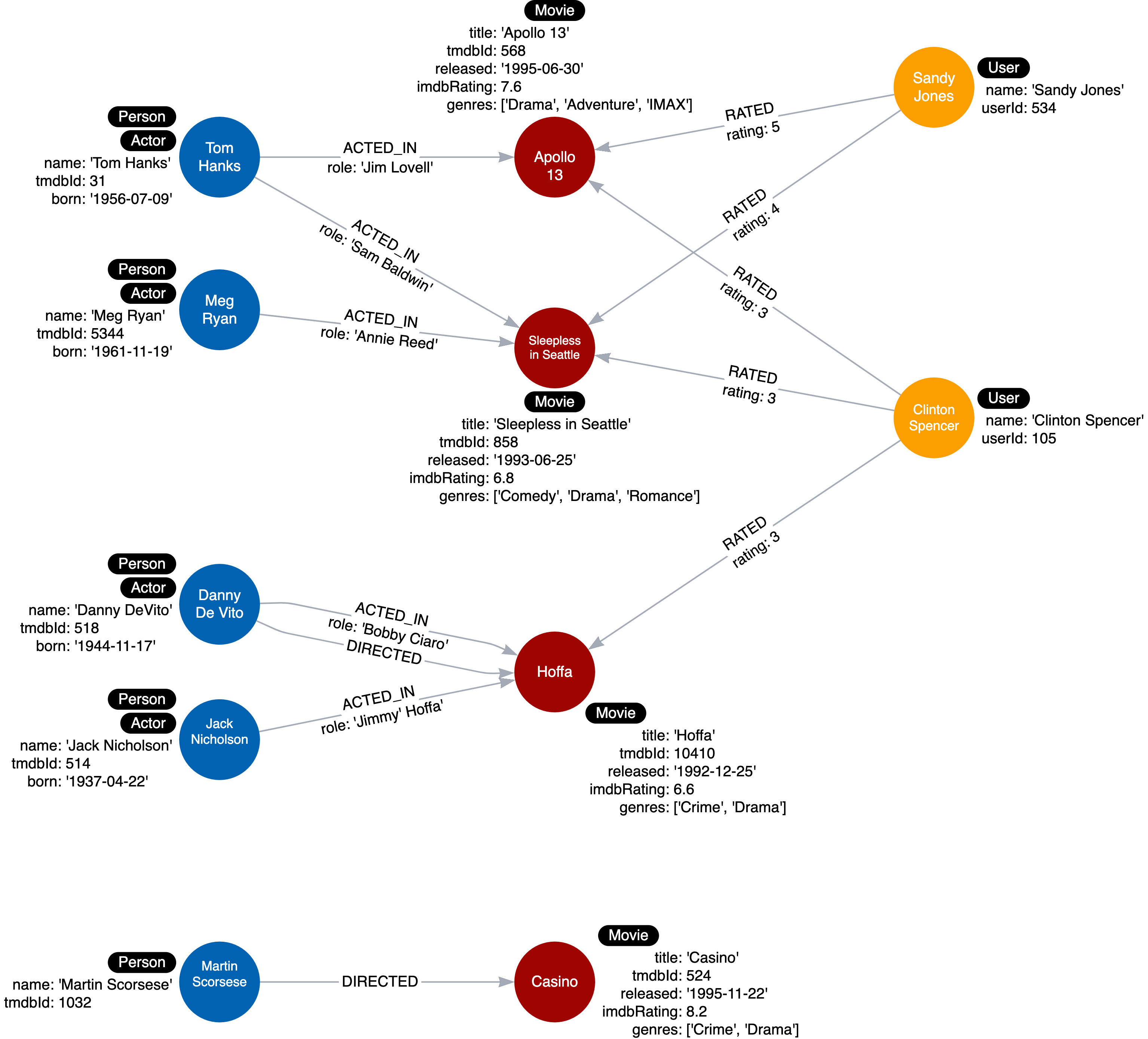

Here is the refactored instance model we will create in the graph:

Added Actor label

Refactor the graph

With Cypher, you can easily transform the graph. With this code, that you will execute in the next Challenge, we find all Person nodes that have an ACTED_IN relationship. We then set a label for the node.

cypher
MATCH (p:Person)
WHERE exists ((p)-[:ACTED_IN]-())
SET p:Actor

In the next Challenge, you will refactor the graph to add the Actor label.

Check your understanding

1. Why add labels?

What is the primary reason why you would add labels to nodes?

  • ❏ To model hierarchies.

  • ❏ To make the data model easier to read.

  • ✓ To reduce the number of data accessed at runtime.

  • ❏ To make the Cypher code flexible and easy to paramaterize.

Hint

By adding new labels, you can reduce the number of nodes that are accessed during the query or to filter the results to a certain subset of nodes.

Solution

The correct answer is To reduce the number of data accessed at runtime..

2. Number of labels

As a best practice, what is the maximum number of labels a node should have?

  • ❏ 1

  • ❏ 2

  • ✓ 4

  • ❏ 64

Hint

When the number of labels stored against a node exceeds 4, the data is stored in different way which may prove to be slower to access at runtime.

Solution

It is a best practice to limit the number of labels to 4.

Summary

In this lesson, you learned why adding labels can benefit the use cases and how to measure the benefit using PROFILE. In the next challenge, you refactor the graph to add the Actor label.
